帶密封薄壁球軸承JU系列
作者： 發布時間：2016-02-23 瀏覽次數：4120

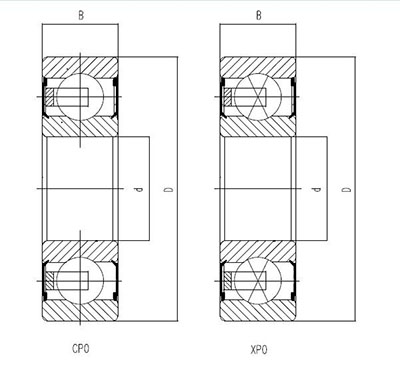

| 型號 Type | 型號 Type | 尺寸 | 基本載荷 | Weight | Interchange | ||||||
| (inch/mm) Dimension | Basic Cap.N | Kg | |||||||||
| d | D | B | 徑向Radial | 軸向Thrust | KAYDON | KAYDON | |||||
| Cor | Cr | Coa | Ca | ||||||||
| HNJU040XP0 | HNJU040CP0 | 4 | 4.75 | 0.5 | 9340 | 3910 | 23380 | 9820 | 0.249 | JU040XP0 | JU040CP0 |
| 101.6 | 120.65 | 12.7 | |||||||||
| HNJU042XP0 | HNJU042CP0 | 4.25 | 5 | 0.5 | 9870 | 4090 | 24710 | 10180 | 0.263 | JU042XP0 | JU042CP0 |
| 107.95 | 127 | 12.7 | |||||||||
| HNJU045XP0 | HNJU045CP0 | 4.5 | 5.25 | 0.5 | 10400 | 4220 | 26050 | 10580 | 0.277 | JU045XP0 | JU045CP0 |
| 114.3 | 133.35 | 12.7 | |||||||||
| HNJU047XP0 | HNJU047CP0 | 4.75 | 5.5 | 0.5 | 10940 | 4360 | 27380 | 10940 | 0.295 | JU047XP0 | JU047CP0 |
| 120.65 | 139.7 | 12.7 | |||||||||
| HNJU050XP0 | HNJU050CP0 | 5 | 5.75 | 0.5 | 11510 | 4490 | 28720 | 11290 | 0.308 | JU050XP0 | JU050CP0 |
| 127 | 146.05 | 12.7 | |||||||||
| HNJU055XP0 | HNJU055CP0 | 5.5 | 6.25 | 0.5 | 12580 | 4800 | 31380 | 11960 | 0.336 | JU055XP0 | JU055CP0 |
| 139.7 | 158.75 | 12.7 | |||||||||
| HNJU060XP0 | HNJU060CP0 | 6 | 6.75 | 0.5 | 13650 | 5070 | 34050 | 12620 | 0.367 | JU060XP0 | JU060CP0 |
| 152.4 | 171.45 | 12.7 | |||||||||
| HNJU065XP0 | HNJU065CP0 | 6.5 | 7.25 | 0.5 | 14710 | 5330 | 36760 | 13290 | 0.395 | JU065XP0 | JU065CP0 |
| 165.1 | 184.15 | 12.7 | |||||||||
| HNJU070XP0 | HNJU070CP0 | 7 | 7.75 | 0.5 | 15780 | 5560 | 39430 | 13910 | 0.422 | JU070XP0 | JU070CP0 |
| 177.8 | 196.85 | 12.7 | |||||||||
| HNJU075XP0 | HNJU075CP0 | 7.5 | 8.25 | 0.5 | 16850 | 5820 | 42090 | 14540 | 0.449 | JU075XP0 | JU075CP0 |
| 190.5 | 209.55 | 12.7 | |||||||||
| HNJU080XP0 | HNJU080CP0 | 8 | 8.75 | 0.5 | 17910 | 6050 | 44760 | 15160 | 0.481 | JU080XP0 | JU080CP0 |
| 203.2 | 222.25 | 12.7 | |||||||||
| HNJU090XP0 | HNJU090CP0 | 9 | 9.75 | 0.5 | 20050 | 6530 | 50100 | 16310 | 0.535 | JU090XP0 | JU090CP0 |
| 228.6 | 247.65 | 12.7 | |||||||||
| HNJU100XP0 | HNJU100CP0 | 10 | 10.75 | 0.5 | 22180 | 6980 | 55430 | 17470 | 0.594 | JU100XP0 | JU100CP0 |
| 254 | 273.05 | 12.7 | |||||||||
| HNJU110XP0 | HNJU110CP0 | 11 | 11.75 | 0.5 | 24310 | 7420 | 60810 | 18580 | 0.649 | JU110XP0 | JU110CP0 |
| 279.4 | 298.45 | 12.7 | |||||||||
| HNJU120XP0 | HNJU120CP0 | 12 | 12.75 | 0.5 | 26450 | 7870 | 66140 | 19650 | 0.708 | JU120XP0 | JU120CP0 |
| 304.8 | 323.85 | 12.7 | |||||||||
